Better Wiring Diagram: We understand wiring diagrams can be challenging for some builders, we can assemble and photograph every connection in your kit, the completed electronics. You simply replicate our work. Just contact us by email...

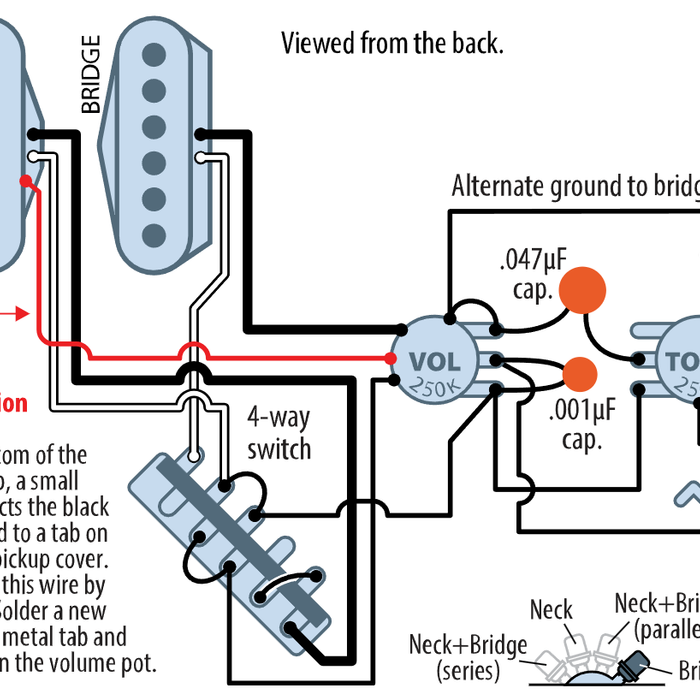

Standard Tele WiringTT + 3W + VT Setting your pickup heightLeave about 1/8" between the Low-E polepiece and the bottom of the string when fretted at the highest fret, and a 3/32" gap for the High-E. If single-coils are set...

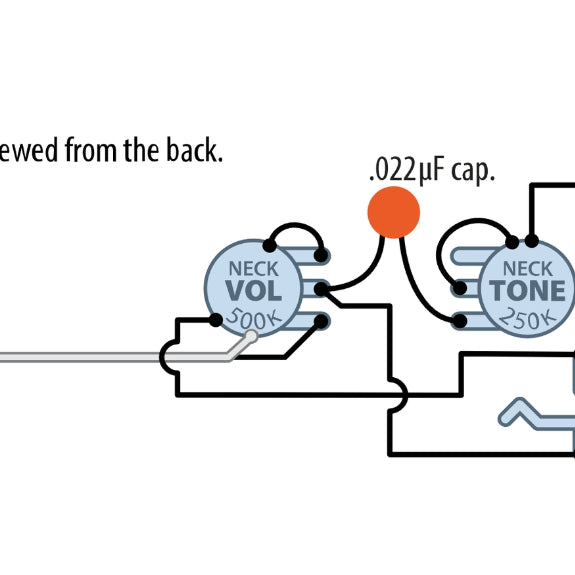

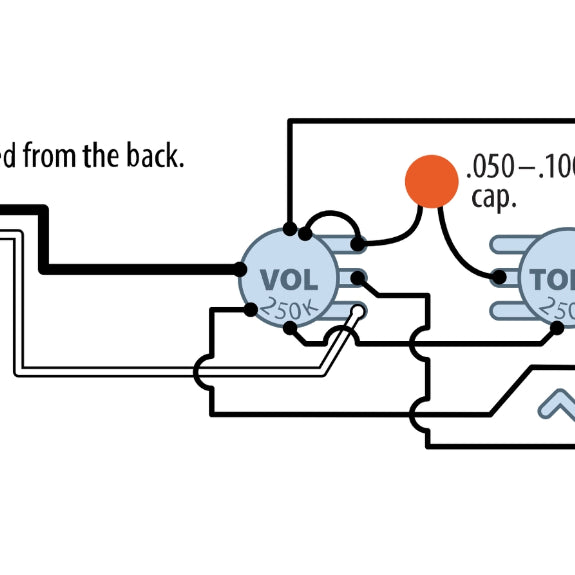

PP + VT Wiring Diagram   Use coax to reduce noise: Minimize hum and noise by using shielded coaxial cable for long runs, such as between the controls and the output jack. Coax cable has a center hot conductor shielded...

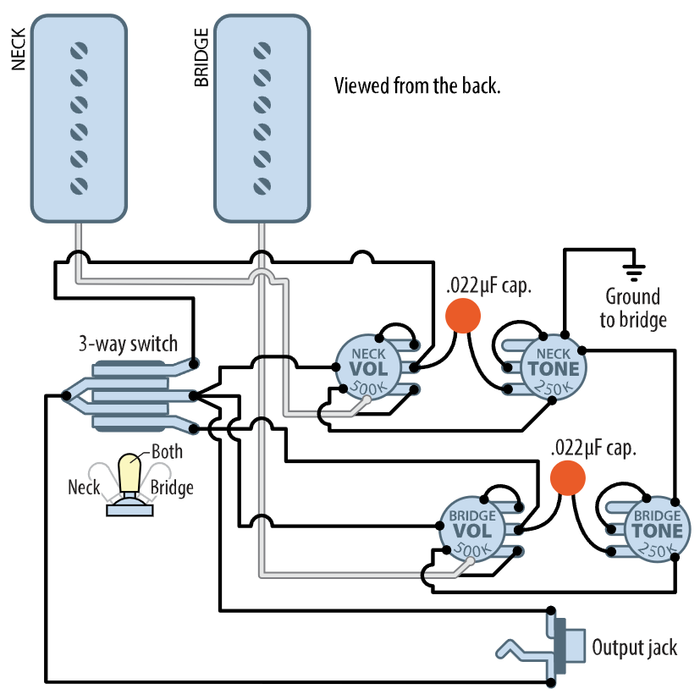

PP + 3W + 2V2T Wiring Diagram  Modern modificationIn the vintage wiring above, rolling off the tone control slightly reduces your volume. Connecting both capacitors as shown below fixes this, but you lose a little treble when you lower the...

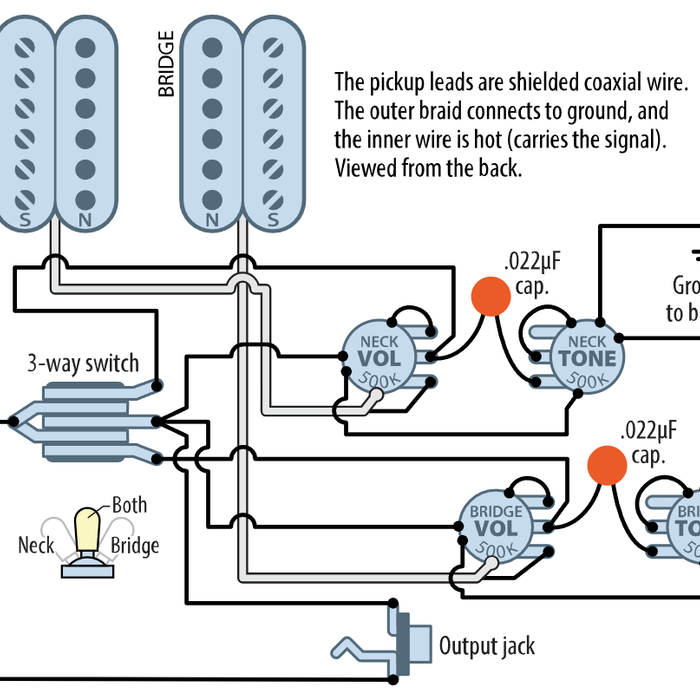

HH + 3W + 2V2T Wiring Diagram  Modern modificationIn the vintage wiring above, rolling off the tone control slightly reduces your volume. Connecting both capacitors as shown below fixes this, but you lose a little treble when you lower the...
